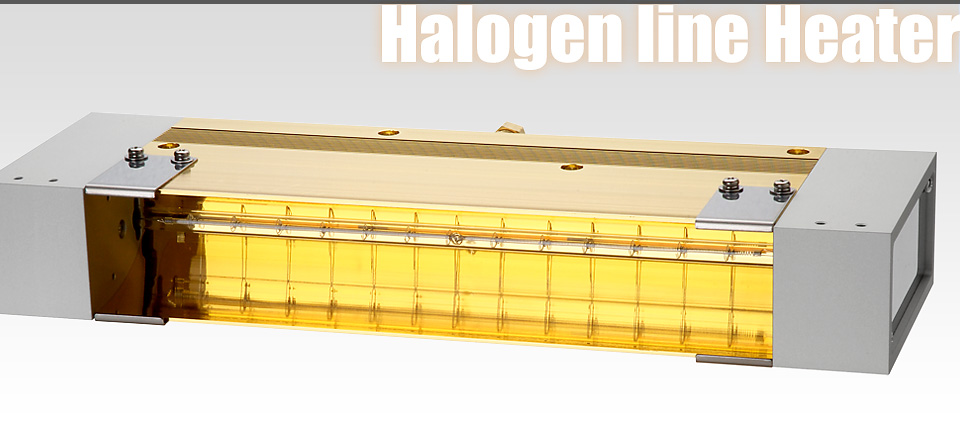

Halogen Heater of Line Heating

Product Photos

Overview

By arranging multiple halogen lamps in the shape of a line, the halogen heaters can be used suitably to heat objects for a fixed time and at a certain temperature. Such uses would include soldering the borders of solar panel cells (tab and string) or plastification in factories.

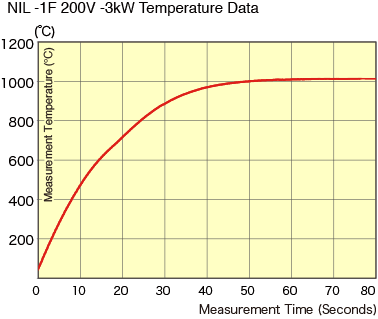

NIL -1F 200V -3kW Temperature Data

Temperature Measurement:
NIL-1F 200V-3kW

  • Voltage 200V
  • Heating Subject: SUS304 (1t×15×15)
  • Thermocouple fixed onto the rear surface of the heating subject and measurements taken.
  • Irradiation distance: 50mm

Product Lineup

Applications

  • Various types of heat processing that require clean heat application through to levels of cleanliness, and preheating for semi-conductors
  • Various types of soldering
  • Ceramic sintering
  • Preheating for metal hardening adjustment and bending
  • Various types of heat source units for furnaces and drying processes, etc.
  • Test sample heating within vacuum chambers
  • Spot-heating on the edges of resin, and heat-shrink tube shrinking
