Halogen Line Heater NIL
- Advantages
- Usage
- Specifications

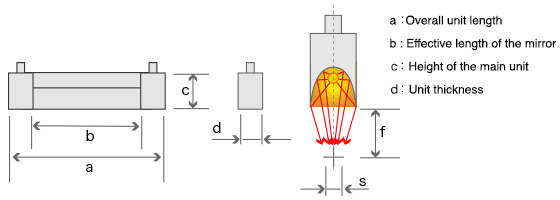

Dimensions Diagrams
* Specifications are subject to alteration for improvement purposes without prior notice.

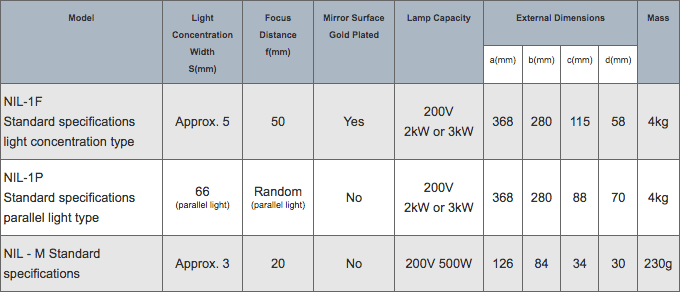

Specifications
| Model | Light Concentration Width S(mm) |
Focus Distance f(mm) |
Mirror Surface Gold Plated |
Lamp Capacity | External Dimensions | Mass | |||
|---|---|---|---|---|---|---|---|---|---|
| a(mm) | b(mm) | c(mm) | d(mm) | ||||||
NIL-1F |
Approx. 5 | 50 | Yes | 200V |
368 | 280 | 115 | 58 | 4kg |
NIL-1P |
66 (parallel light) |
Random (parallel light) |
No | 200V |
368 | 280 | 88 | 70 | 4kg |
NIL - M Standard |
Approx. 3 | 20 | No | 200V 500W | 126 | 84 | 34 | 30 | 230g |
* Specifications are subject to alteration for improvement purposes without prior notice.
