Super Beam Heater SBH-300A/SBH-1000A

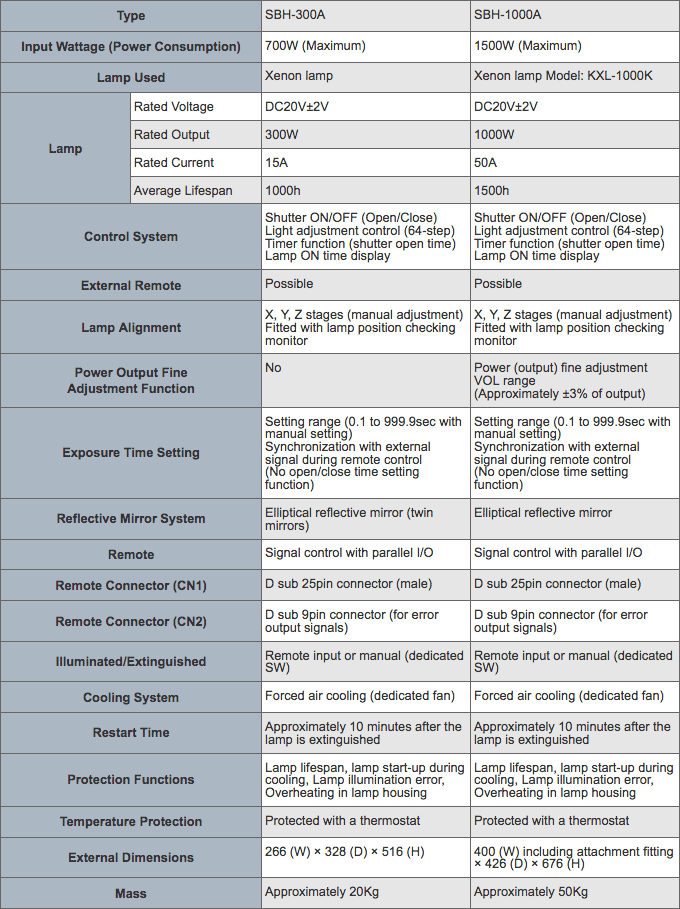

Specifications

Specifications
Type SBH-300A SBH-1000A
Input Wattage (Power Consumption) 700W (Maximum) 1500W (Maximum)
Lamp Used Xenon lamp Xenon lamp Model: KXL-1000K
Lamp Rated Voltage DC20V±2V DC20V±2V
Rated Output 300W  1000W
Rated Current 15A 50A
Average Lifespan 1000h 1500h
Control System Shutter ON/OFF (Open/Close)
Light adjustment control (64-step)
Timer function (shutter open time)
Lamp ON time display
Shutter ON/OFF (Open/Close)
Light adjustment control (64-step)
Timer function (shutter open time)
Lamp ON time display
External Remote Possible Possible
Lamp Alignment X, Y, Z stages (manual adjustment)
Fitted with lamp position checking monitor
X, Y, Z stages (manual adjustment)
Fitted with lamp position checking monitor
Power Output Fine
Adjustment Function
No Power (output) fine adjustment VOL range
(Approximately ±3% of output)
Exposure Time Setting Setting range (0.1 to 999.9sec with manual setting)
Synchronization with external signal during remote control
(No open/close time setting function)
Setting range (0.1 to 999.9sec with manual setting)
Synchronization with external signal during remote control
(No open/close time setting function)
Reflective Mirror System Elliptical reflective mirror (twin mirrors) Elliptical reflective mirror
Remote Signal control with parallel I/O Signal control with parallel I/O
Remote Connector (CN1) D sub 25pin connector (male) D sub 25pin connector (male)
Remote Connector (CN2) D sub 9pin connector (for error output signals) D sub 9pin connector (for error output signals)
Illuminated/Extinguished Remote input or manual (dedicated SW) Remote input or manual (dedicated SW)
Cooling System Forced air cooling (dedicated fan) Forced air cooling (dedicated fan)
Restart Time Approximately 10 minutes after the lamp is extinguished Approximately 10 minutes after the lamp is extinguished
Protection Functions Lamp lifespan, lamp start-up during cooling, Lamp illumination error, Overheating in lamp housing Lamp lifespan, lamp start-up during cooling, Lamp illumination error, Overheating in lamp housing
Temperature Protection Protected with a thermostat Protected with a thermostat
External Dimensions 266 (W) × 328 (D) × 516 (H) 400 (W) including attachment fitting × 426 (D) × 676 (H)
Mass Approximately 20Kg Approximately 50Kg

* Specifications are subject to alteration for improvement purposes without prior notice.
