Super Air Heater DFC-20E Digital Flow Controller
(Temperature Control, Flow Meter)
- Advantages
- Specifications

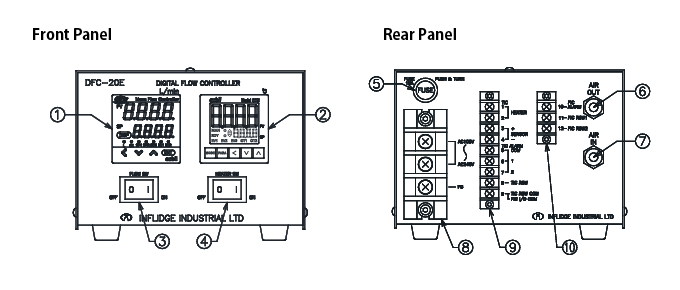

Part Names
| 1 | Flow setting and display | 9 | 3) Sensor (thermocouple) input terminal (+) |
|---|---|---|---|
| 2 | Temperature setting and display | 4) Sensor (thermocouple) input terminal (-) | |
| 3 | Flow adjustor power switch | 5) Event output terminal (COM) | |
| 4 | Thermostat power switch | 6) Event output terminal (EV1) | |
| 5 | Fuse | 7) Event output terminal (EV2) | |
| 6 | Flow outlet (for φ6 pipes) | 8) External input terminal (RSW1) | |
| 7 | Flow inlet (for φ6 pipes) | 9) External input terminal (COM) (shared with flow meter) | |
| 8 | Power input terminal | 10 | Flow adjustor connector |
| 9 | Temp cont terminal | 10) Event output terminal (EV1) | |
| 1) Heater output terminal | 11) External input terminal (RSW1) | ||
| 2) Heater output terminal | 12) External input terminal (RSW2) |
Specifications
| Voltage | AC100V 50 / 60Hz | AC200V 50 / 60Hz |
|---|---|---|
| Heater in Use | SEN , MAX | |
| Temperature Range | 0 to 800°C | |
| Control System | Thermostat: PID, Flow Meter: Proportional Solenoid Valve | |
| Accuracy | Thermostat: ±0.3% FS, Flow Meter: ±0.2% FS | |
| Event Output | Thermostat: Event Output Points: 2, Flow Meter: Event Output Points: 1 | |
| Rated Output | Thermostat: AC250V 3A, DC30V 1A, Flow Meter: DC30V 15mA | |
| External Input | Thermostat: External Input Points: 1, Flow Meter: External Input Points: 2 | |
| Input Method | Thermostat/Flow Meter: Non-voltage Contact or Open Collector | |
| Gas Type | Air/Nitrogen *Note 1 | |
| Control Range | 1 to 20 L/min | |
| Withstand Voltage | 0.5 Mpa | |
| Standard Differential Pressure |
0.2 Mpa | |
| Range of Operational Differential Pressure |
0.05 Mpa to 0.3 Mpa | |
| Dimensions | W161×H119 (including rubber feet) ×D200 (excluding terminal block) | |
| Weight | Approximately 2.5kg | |
* Specifications are subject to alteration for improvement purposes without prior notice.
Note 1: Must be dry air containing no corrosive content (chlorine, sulfur, acid). Clean air containing no dust or oil mist.
