Super Air Heater Digital Temperature Control Unit DAC-8E
- Advantages
- Specifications

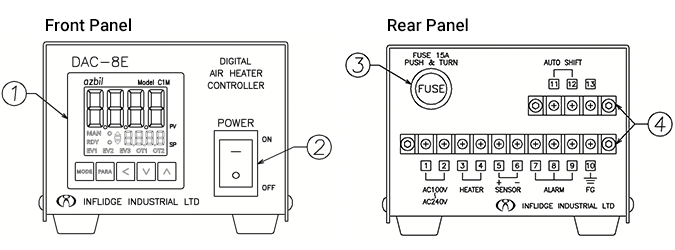

Part Names
| 1 | Display | 4 | 6)Sensor(TC）Inputterminal(－) |
|---|---|---|---|
| 2 | PowerSwitch | 7)EventOutputterminal(COM) | |
| 3 | Fuse | 8)EventOutputterminal(EV1) | |
| 4 | 1)PowerInputterminal | 9)EventOutputterminal(EV2) | |
| 2)PowerInputterminal | 10)Ground | ||
| 3)HeaterOutputterminal | 11)ExternalInputterminal(RSW1) | ||
| 4)HeaterOutputterminal | 12)ExternalInputterminal(COM) | ||
| 5)Sensor(TC）Inputterminal(＋) | 13)Emptyterminal |
Specifications
| Voltage | AC100V 50 / 60Hz | AC200V 50 / 60Hz |
|---|---|---|
| Maximum load current | 10A | |
| Heater in Use | SEN , MAX | |
| Temperature Range | 0 to 800°C | |
| Control System | PID | |
| Accuracy | ±0.3％FS | |
| Event Output | Event output points: 2 points | |
| Contact rating | AC250V/DC30V 2A (Resistive load) | |
| External Input | External input points: 1 point | |
| Input type | Non-voltage contacts or Open collector | |
| Dimensions | W101×H80 (including rubber feet) ×D196 | |
| Mass | approx.1.2Kg | |
* Specifications are subject to alteration for improvement purposes without prior notice.
