Super Air Heater DAC-84D Multiple Temperature Control Unit

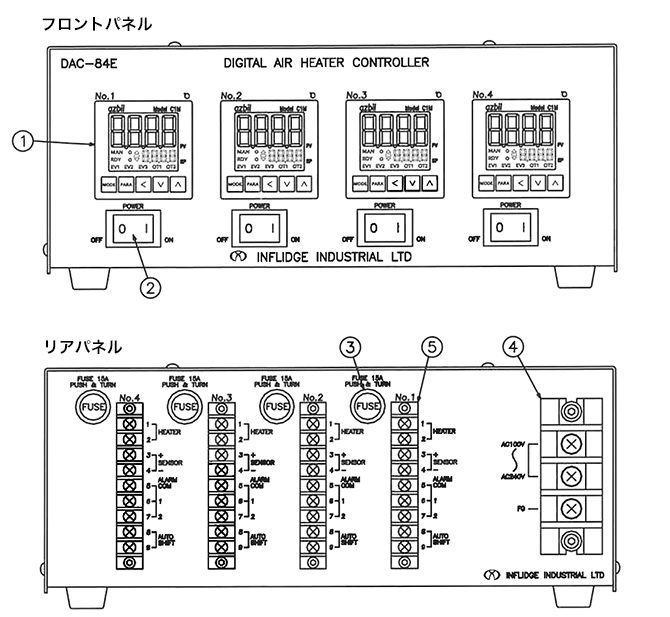

Part Names
| 1 |
No.1 Display Area |
6 |
Para Key |
| 2 |
LEDs for AT and ST Use |
7 |
Mode Key |
| 3 |
No.2 Display Area |
8 |
Power Switch |
| 4 |
Mode Indicator |
9 |
Fuse |
| 5 |
Setting Key |
|
|
| 10 |

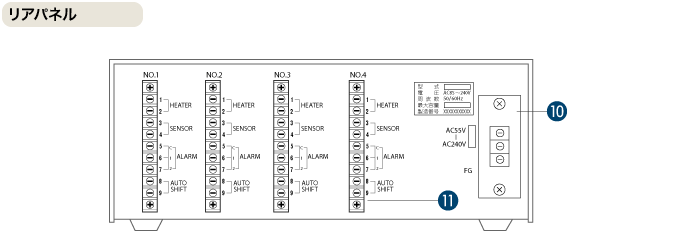

Power Input Terminal |
11 |
5) Event Output Terminal (COM) |
| 11 |
1) Heater Output Terminal |
6) Event Output Terminal (EV1) |
| 2) Heater Output Terminal |
7) Event Output Terminal (EV2) |
| 3) Sensor (Thermocouple) Input Terminal (+) |
8) External Input Terminal (RSW1) |
| 4) Sensor (Thermocouple) Input Terminal (－) |
9) External Input Terminal (COM) |

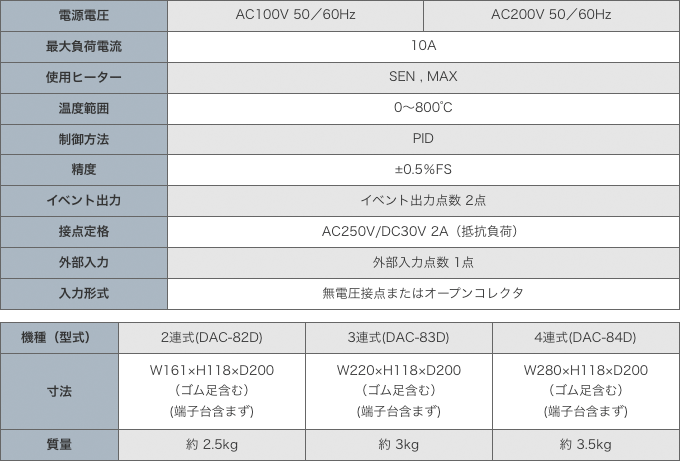

Specifications
| Voltage |
AC100V 50 / 60Hz |
AC200V 50 / 60Hz |
| Heater in Use |
SEN , MAX |
| Temperature Range |
0 to 800°C |
| Control System |
PID |
| Accuracy |
±0.5%FS |
| Event Output |
Event output points: 2 |
| Rated Output |
AC250V 3A, DC30V 1A |
| External Input |
External input points: 1 |
| Input Method |
Non-voltage contact or open collector |
* Specifications are subject to alteration for improvement purposes without prior notice.
